Cable Tie

  • Cable Tie
  • Cable Tie
  • Cable Tie
Applications

Cable ties can meet a broad range of requirements from the simple bundling of cables to very specific uses of cable ties under extreme conditions.

Product Materials

Nylon 66, 94V-2 certificated by UL. It features heat-resisting, acid &erosion control, insulate well and not apt to age.

Working Environment

Temperature: -35℃ to 85℃.

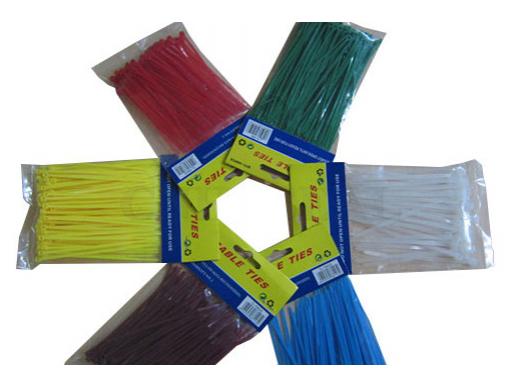

Optional Colors

Standard colors (natural or white), UV black and other customized colors are available.

Specifications
Part No. Length Width Thickness Head Height Head Width MAX Bundle Min strength
mm (inch) mm mm mm mm mm kg
CH-3×60 60 2.4 2.2 1.0 3.4 4.35 11 8(18)
CH -3×80 80 3.2 2.2 1.0 3.4 4.35 15
CH -3×100 100 4 2.5 1.0 3.45 4.35 22
CH -3×120 120 4.7 2.5 1.1 3.55 4.6 30
CH -3×150 150 6 2.5 1.1 3.5 4.55 35
CH -3×160 160 6.3 2.5 1.1 3.5 4.5 40
CH -3×200 200 8 2.5 1.1 3.5 4.5 53
CH -4×120 120 4.7 3.6 1.2 4.3 6.05 30 18(40)
CH -4×140 140 5.5 3.6 1.3 4.3 6.05 33
CH -4×150 150 6 3.6 1.3 4.3 6.05 35
CH -4×180 180 7.1 3.6 1.3 4.45 6.2 44
CH -4×200 200 8 3.6 1.3 4.35 6.1 53
CH -4×250 250 10 3.6 1.35 4.5 6.15 65
CH -4×300 300 12 3.6 1.35 4.4 6.15 76
CH -4×370 370 14.5 3.6 1.35 4.5 6.15 102
